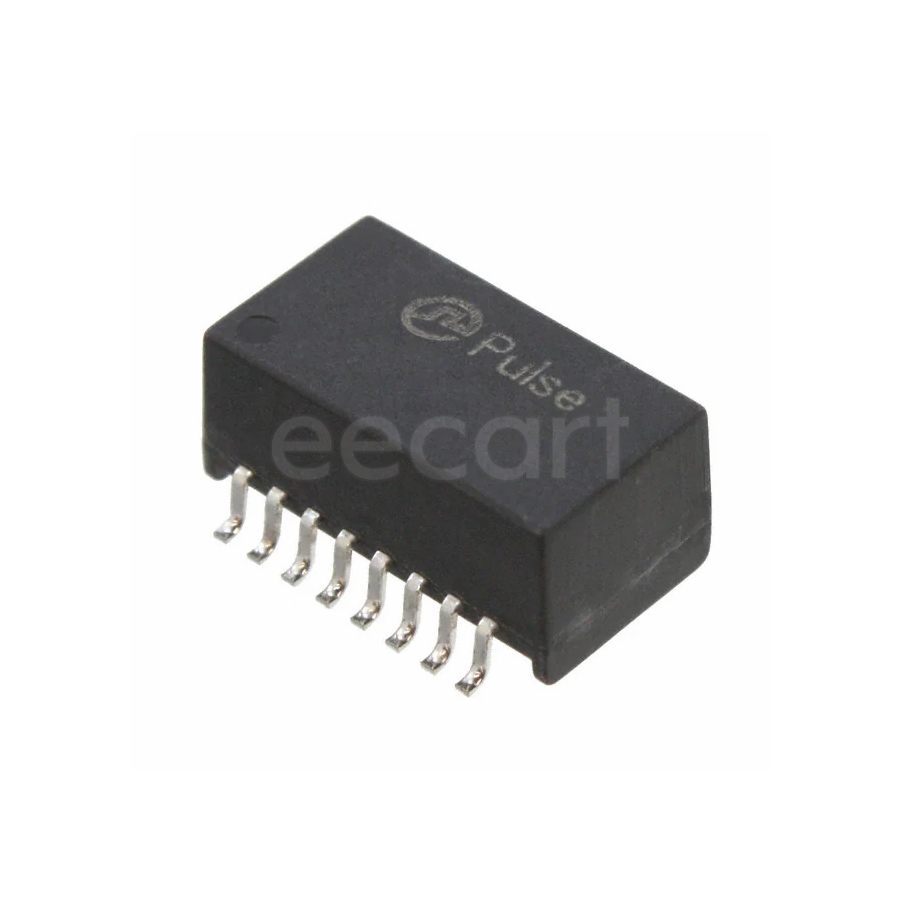

H2019FNLT
Manufacturer:
Pulse Electronics
Mfr.Part #:
H2019FNLT
Datasheet:
Description:
Transformers SMD/SMT 1 MHz to 125 MHz 350 µH
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 0.47 mm |
| Length | 12.7 mm |
| Width | 9.0932 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Height | 5.9944 mm |
| Packaging | Reel |
| Depth | 9.53 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead/Base Style | Gull Wing |
| Frequency | 1 MHz to 125 MHz |
| DC Resistance (DCR) | 650 mΩ |
| Insertion Loss (dB) | -1.2 dB |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Inductance | 350 µH |
| Turns Ratio | 1:1 |
| Isolation Voltage | 1.5 kV |
| Return Loss | -12 dB |
| Schedule B | 8504312000 |
Stock: 1003
Distributors
pcbx
pcbxUnit Price$3.17610
Ext.Price$3.17610
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.17610 | $3.17610 |
| 10 | $2.86810 | $28.68100 |
| 25 | $2.75248 | $68.81200 |
| 50 | $2.66792 | $133.39600 |
| 100 | $2.58540 | $258.54000 |
| 300 | $2.48159 | $744.47700 |
| 500 | $2.38198 | $1190.99000 |
